LPG CAROUSEL

Technical Specification: LPG Carousel (Carosol) Filling System

General Description:

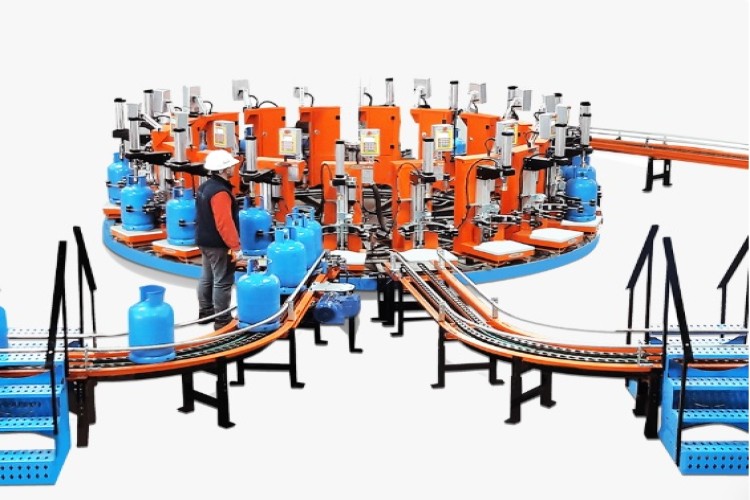

The LPG Carousel (Carosol) is an automated cylinder filling system designed for high-speed, accurate filling of LPG cylinders in bottling plants. This rotary filling machine ensures precise weight measurement and safe handling of liquefied petroleum gas.

Key Specifications:

1. Capacity:
   • Filling Speed: 200-600 cylinders/hour (adjustable)
   • Cylinder Sizes: 5kg to 50kg (customizable)
2. Weighing System:
   • Accuracy: ±0.1% of gross weight
   • Load Cells: Stainless steel, IP67 rated
   • Display: Digital weight indicator with tare function
3. Mechanical Specifications:
   • Turntable Diameter: 3-6 meters (depending on model)
   • Filling Positions: 12-36 stations
   • Construction Material: Carbon steel/SS304 (food-grade option available)
4. Performance Parameters:
   • Filling Pressure: 0.8-1.2 MPa
   • Operating Temperature: -10°C to +50°C
   • Power Supply: 380V/415V, 3-phase, 50Hz
5. Safety Features:
   • Explosion-proof design (ATEX certified)
   • Emergency stop system
   • Overfill prevention
   • Leak detection sensors
   • Grounding system
6. Control System:
   • PLC-based automation
   • Touchscreen HMI
   • Data logging capability
   • Remote monitoring option
7. Compliance Standards:
   • ISO 9001:2015
   • OIML R79
   • PED 2014/68/EU
   • CE Marking
8. Options:
   • Automatic valve opener/closer
   • Leak testing station
   • Vacuum system
   • Printer for labeling
   • SCADA integration

Applications:

• LPG bottling plants
• Industrial gas filling facilities
• Cylinder distribution centers
